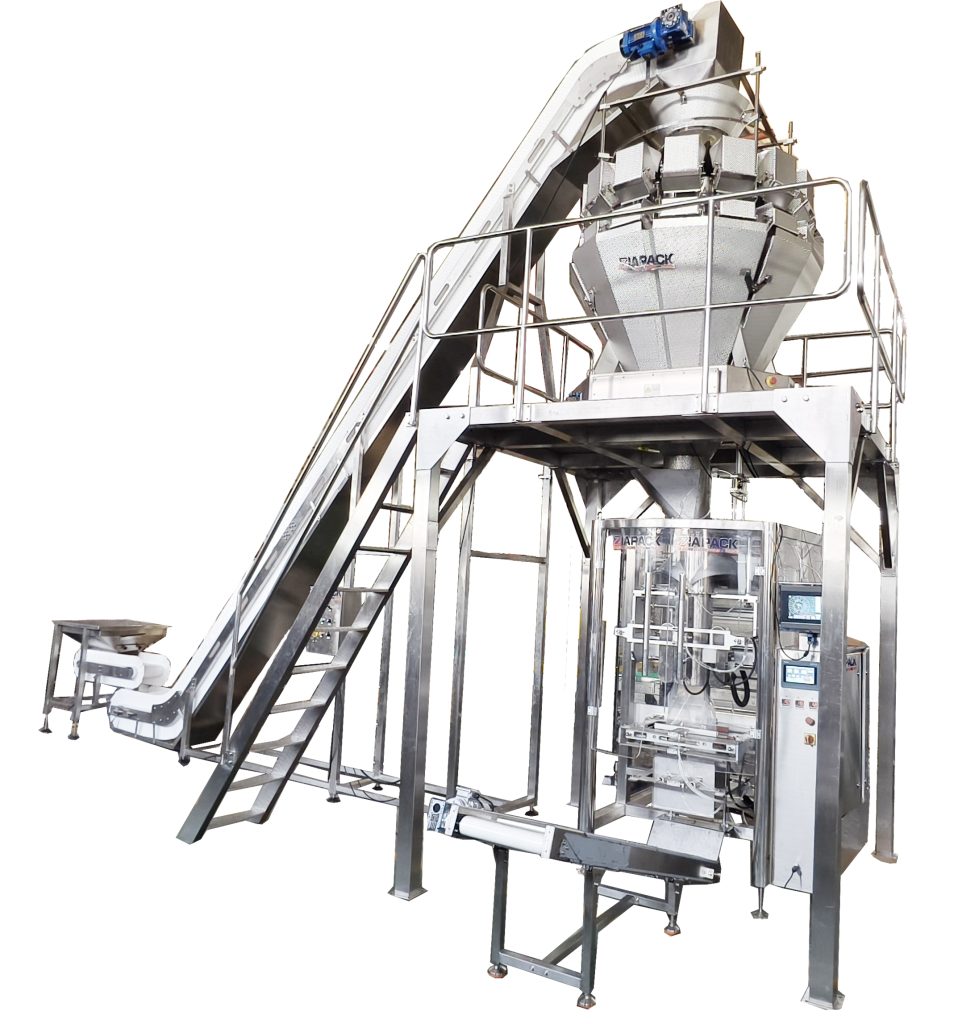

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Primjena:

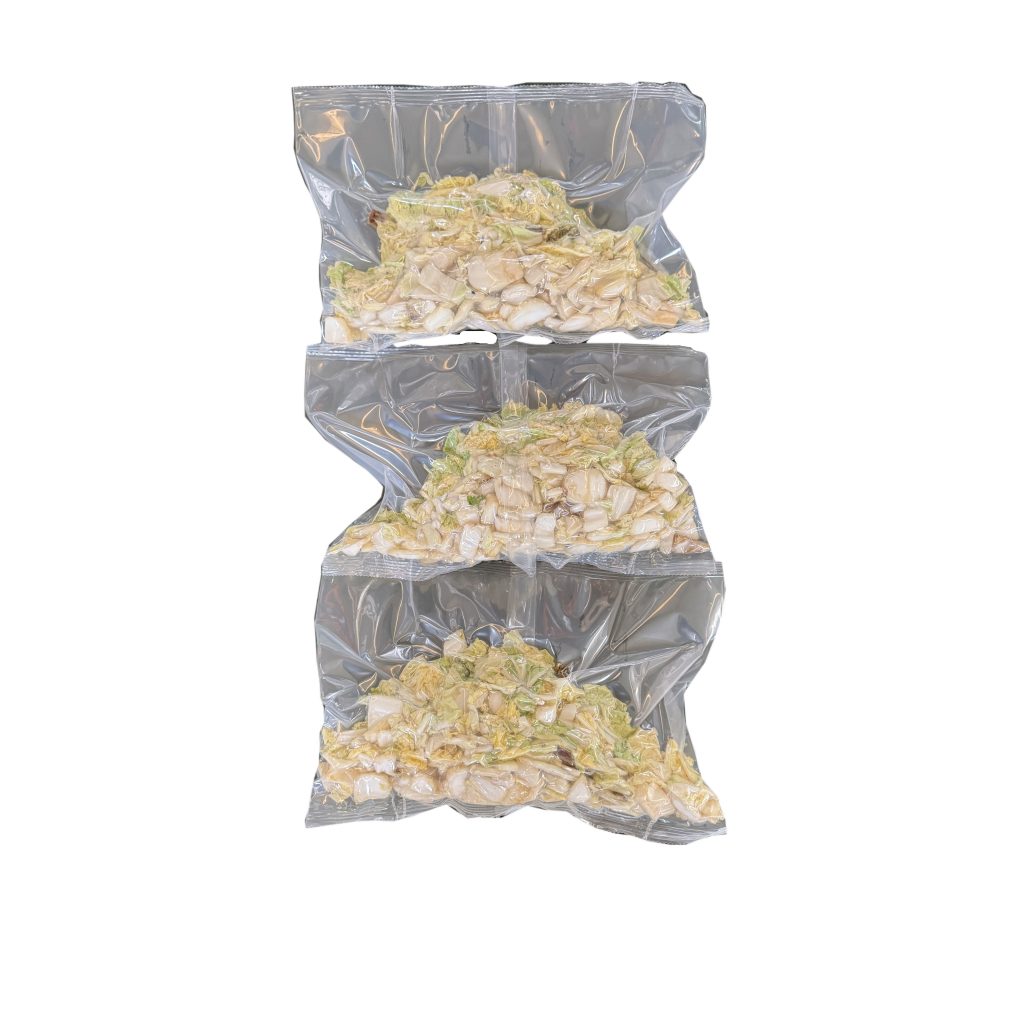

It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Karakteristike:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Uvod :
Ova mašina može automatski realizovati funkcije pravljenja vreća, punjenja, zatvaranja, štampanja, rezanja, itd. Ova mašina može automatski doći do punjenja i zatvaranja vreća za formiranje.
Ova mašina za pakovanje usvaja uvozni servo motor za punjenje filma, a interfejs čovek-mašina koristi napredni ekran osetljiv na dodir. Rad jednostavniji i praktičniji. Sve komponente su poznate međunarodno poznatog brenda, PLC je SIEMENS, servo motor je PANASONIC, ekran osetljiv na dodir je SIEMENS, cilindar i vazdušni ventil je SMC. dijelovi koji su u kontaktu s materijalom 、kontrolni ormar 、glavni okvir izrađeni su od nehrđajućeg čelika304
Tehnički parametri:
| Model | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Dužina duljine | 150-480mm by secondary film pulling the bag length can be longer |
| Širina vreća | 120-375mm(Side width +front width ) |
| Širina filma | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Snaga | 6KW 380V±10% 50Hz |
| Veličina mašine | 1650*1500*1750mm |
| Masa mašine | 650kg |
