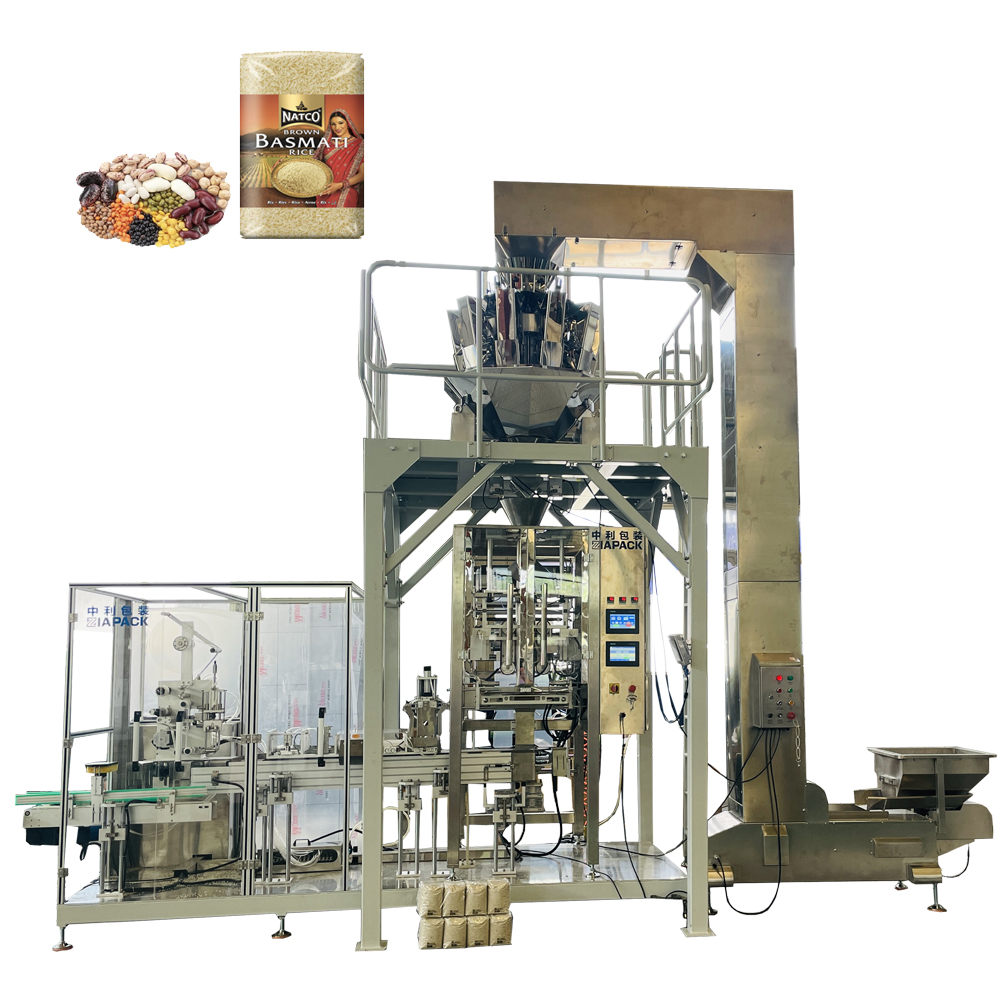

ZL520 automatic bag forming filling sealing and top labeling machine
Uvod :
This machine are special design for packing granule product into square bottom bag .It is widely use for packing wheat rice bean grain and similar product .This machine unit are including ZLB500 Volumetric cup dosing system ,one set ZL420 vertical bag forming filling machine .one set ZLYB1000 linear bag forming sealing and labeling machine and one set output conveyor .It can make the nice bag with square bottom and fold the bag mouth and labeling .So the finished bag have a nice shape ,pretty outlook .
Details information of the machine

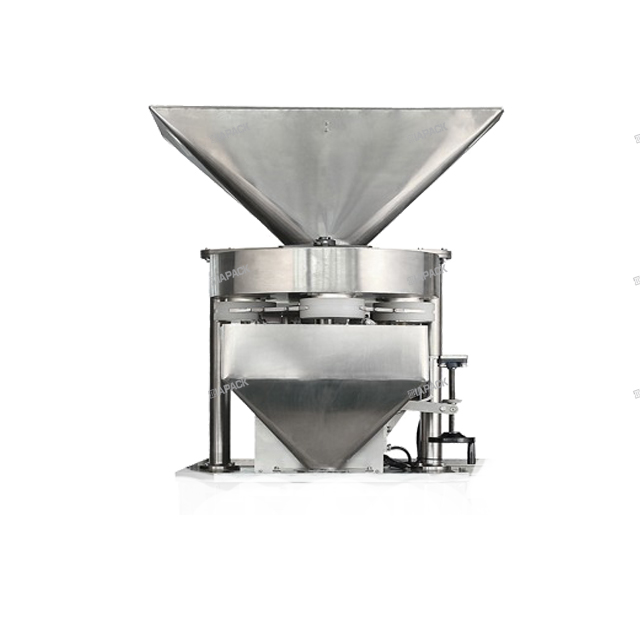

1,ZLB500 Volumetric cup dosing system with cover
The whole machine made by SUS304.Adopt China famous brand motor .Volume can be adjust from 75%-100% .Including the vibrate feeding device which special design for wet salt and mixed device.
Tehnički parametri:
Speed: 40-60time/min
Power :220V 50HZ 0.75KW
2,ZL420 Vertical bag forming filling sealing packaging machine
The unit of machine is especially developed for small bag packaging ,This machine can independently complete the bag making, filling (air filling or exhausting as option), sealing (hole punching as option ) code printing, and bag counting etc. adopt film automatic correction device .The machine frame and material contact part made by SUS304 .PLC and touch screen adopt by Siemens brand .Adopt Panasonic servo motor for horizontal sealing which is fast and stable .And Pneumatic parts adopt Air Tac brand .Main Electrical components adopt Omron and Schneider brand Which is easy to operation
Tehnički parametri
Weighing Range: 500-1000gram
Packaging Speed:18-20 bags/min for 1kg 20-25bags/min for 500gram
Bag size: (80-280)*(60-180)mm(L*W)
Potreba za komprimiranim zrakom: 0,6Mpa 0,65m³/min
Vanjski prečnik koluta: 400 mm
Unutrašnji prečnik jezgra: 75 mm
3,ZLYB1000 linear model bag forming sealing and labeling machine
Ova mašina je specijalnog dizajna za izradu vrećice sa gornjim nalepnicama. Nakon pune vrećice sa ispuštanjem proizvoda na ovu mašinu. Ova mašina će nositi torbu, proći kroz jednokratno presavijanje vrećice i zatim zalepiti etiketu. Okvir mašine napravljen od strane SUS304 .PLC i ekran osjetljiv na dodir usvajaju marke Siemens. A pneumatski dijelovi usvajaju SMC brend. Glavne električne komponente usvajaju brend Omron i Schneider. Ova mašina radi sa automatskom mašinom za pakovanje kako bi dostigla gotovu etiketu na vrhu vrećice. Ova mašina može automatski doći do funkcije. naljepnica odvojena ,Slanje naljepnica .Detektor naljepnica i presovanje naljepnica .
