Uvod :
This machine are special design for packing powder product into pillow bottom bag .It is widely use for packing wheat flour and chemical powder .This machine unit are including one set ZL2000 auger filling machine one set ZL520 vertical bag forming filling machine .one set Open mouth bag conveying machine and control system .The whole machine control by PLC and operate by color touch screen .
Bag carrying conveyor
Napredak rada:
1,Automatic weighing and discharge the material
2,Automatic making the bag and filling the material
3,Automatic discharge the bag on conveying machine with module
4,Sending the bag to manual vacuuming and sealing
Details information of the machine

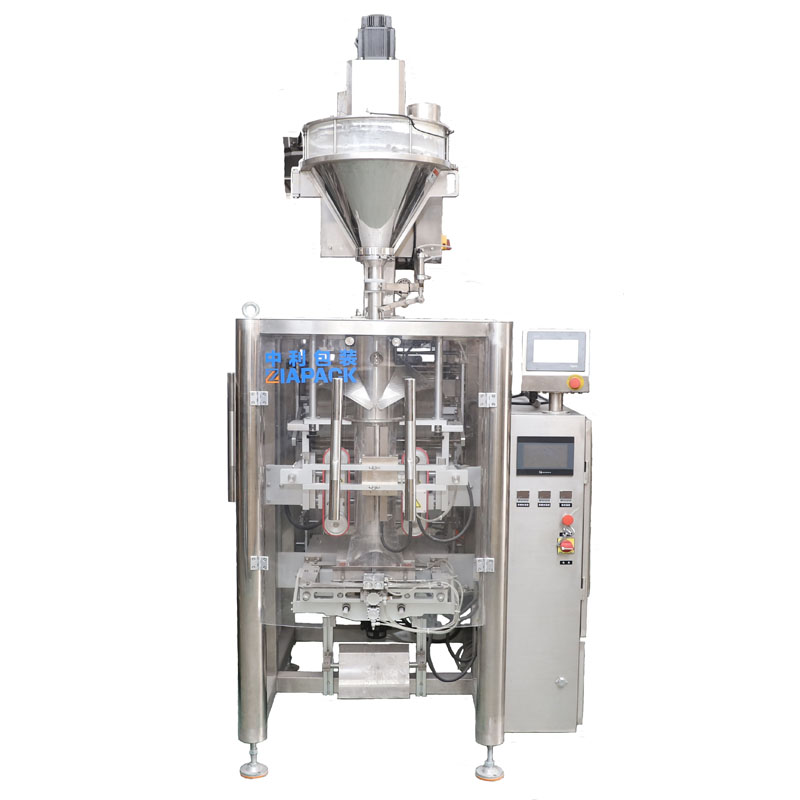

1,ZL520 Vertical bag forming filling sealing machine
The unit of machine is especially developed for small bag packaging ,This machine can independently complete the bag making, filling (air filling or exhausting as option), sealing (hole punching as option ) code printing, and bag counting etc. adopt film automatic correction device .The machine frame and material contact part made by SUS304 .PLC and touch screen adopt by Siemens brand .Adopt Panasonic servo motor for horizontal sealing which is fast and stable .And Pneumatic parts adopt Air Tac brand .Main Electrical components adopt Omron and Schneider brand Which is easy to operation
Tehnički parametri
Weighing Range: 500-1000gram
Brzina pakovanja: 20-50 vreća/min
Veličina torbe: (80-350)*(60-260)mm(D*Š)
Potreba za komprimiranim zrakom: 0,6Mpa 0,65m³/min
Vanjski prečnik koluta: 400 mm
Unutrašnji prečnik jezgra: 75 mm
Težina mašine: 800 kg
Izvor napajanja: 5.5kW 380V±10% 50Hz
Glavne karakteristike i karakteristike:
Široka paleta torbica: Jastučni i Gusset vrećice (opcija).
Velika brzina: Više od 20-60 vreća/min
Jednostavan za rukovanje: PLC kontroler i ekran osetljiv na dodir u boji, indikacija greške na ekranu osetljivom na dodir.
Jednostavno podešavanje: samo oko 10 minuta za promenu različitih vreća.
Kontrola frekvencije: brzina se može podesiti pretvaranjem frekvencije unutar opsega.
Visoka automatizacija: bez posade u procesu vaganja i pakovanja, automatski alarm mašine u slučaju kvara.
Sigurnost i higijena: Bez filma, mašina će alarmirati.
Alarm na mašini i zaustavi kada je neadekvatan pritisak vazduha.
Sigurnosni zaštitnici sa sigurnosnim prekidačima, alarmom mašine i zaustavljanjem kada se otvore sigurnosni štitnici.
Higijenska konstrukcija, dijelovi za kontakt proizvoda su usvojeni od nehrđajućeg čelika sus304
